Air Preheater Cleaner

DERC Air Preheater Cleaner

A controlled waterjet system for cleaning air preheater elements.

Options: Compare listed models and configurations below

Enquire about Air Preheater Cleaner

Equipment selection and ongoing support from Waterblast Industrial.

Automated systems ↗

The product

Built for the work.

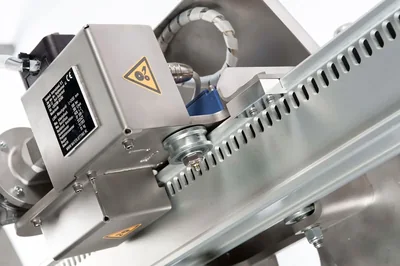

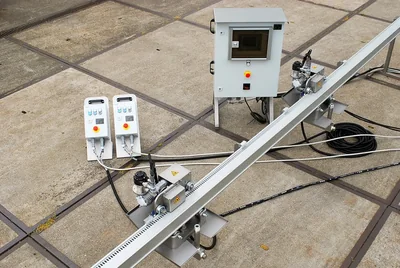

An electric, PLC-controlled carriage moves a waterjet manifold along a rail to clean an air preheater. Cleaning steps can be programmed from the touchscreen.

Where it works.

Air preheater cleaning

What it offers.

Touchscreen process settings
Remote operation and USB data logging
Rail arrangement and manifolds configured to the installation

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

The specifications describe a configured example. Flow capacity depends on rail span and support arrangement; confirm the engineered package.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

Specifications9 entries

MAX. PRESSURE: 700 bar/ 10K
MAX. FLOW: 250 lpm per manifold
RAILS: 2x aluminium rails of 6 meter
MANIFOLD OUTLET: 4- or 5-jet 3/4" NPT female
MANIFOLD INLET: NPT female
WEIGHT: 40 kg per rails
POWER SUPPLY CONTROL BOX: 110 VAC & 60 Hz or 230 VAC and 50 Hz
PROGRAMM: DERC Basic or DERC Advanced
Note: Other design data is possible, Air Preheaters are a standard product of DERC Salotech, by each project the design will be configured.
