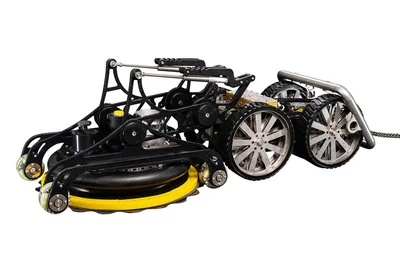

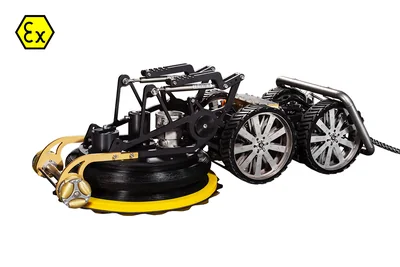

BlastCan
Waterjetting with a vacuum head to collect water and removed material.
Surface preparation
MagTrack
DERC MagTrack
One magnetic carrier. Purpose-built attachments for abrasive blasting, waterjetting, and steel-surface preparation.
- Carrier
- Electrically driven magnetic crawler
- Surfaces
- Flat and slightly curved steel
- Waterjet tools
- Up to 3,000 bar; attachment dependent
Equipment selection and ongoing support from Waterblast Industrial.
The product
Built for the work.
An electrically driven magnetic carrier for flat and slightly curved steel surfaces. Interchangeable attachments let the same platform perform waterjetting, abrasive blasting and other surface work.
Where it works.
- Steel surface preparation
- Storage tank and ship-hull cleaning
- Cargo hold cleaning
- Abrasive blasting
- Inspection and waterjet cutting with the relevant tool
What it offers.
- Remote-controlled travel
- Modular attachment mounting
- Open and vacuum-recovery process options
A modular magnetic platform
One carrier.
Choose how you work.

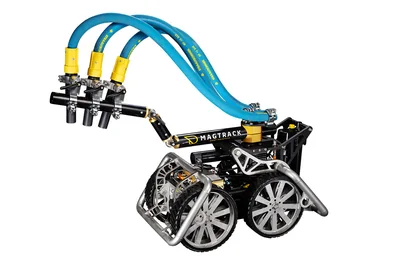

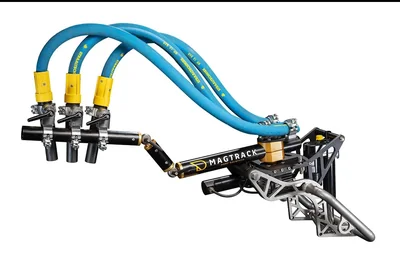

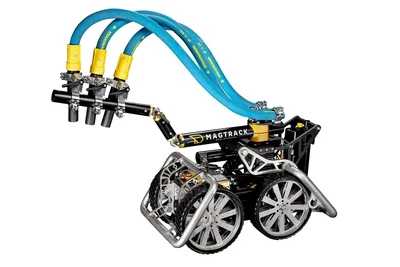

Sandblaster SwingArm
Open abrasive blasting with adjustable nozzle position, angle, and pitch.

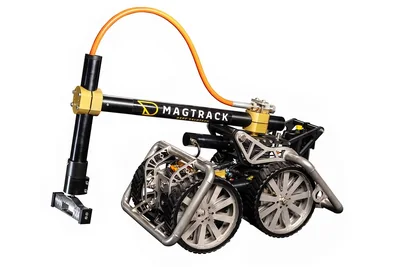

Waterjetting SwingArm
An open waterjetting attachment with adjustable reach to the surface.
ReCycleBlaster
A closed-circuit abrasive blasting attachment with abrasive recovery.
CarrierMagnetic drive
For steel surfaces
PlatformModular attachments
Match the process to the application
OperationRemote control
Operate the carrier from the controller
Technical details
Specifications & models.
Compare the configuration, then talk to us about the complete setup.
The technical tables below describe the configurations in the April 2025 operator manual. Older brochures show different attachment dimensions, weights and connections. Confirm the supplied version, vacuum interface and any ATEX requirements with Waterblast.
Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.
Carrier and control cabinet — manual v5.2, page 133 entries
| COMPONENT | PART / CONFIGURATION | DIMENSIONS (L × W × H) | WEIGHT | POWER / CONNECTION |
|---|---|---|---|---|
| Carrier | DMT.3000.CARRIER | 718 × 510 × 348 mm | 80 kg | 48 V DC |
| Control cabinet | DMT.3000.CTRL.XXX | 700 × 600 × 900 mm | 50 kg | 110 V AC / 20 A fuse or 240 V AC / 16 A fuse; 50/60 Hz |
| Cable to carrier | Control cabinet connection | 50 m | — | Select the supplied control model |
Carrier weight excludes attachments. Cabinet electrical requirements depend on the delivered model.
Waterjet attachments — manual v5.2, pages 14–153 entries
| ATTACHMENT | PART NUMBER | MAX. PRESSURE / FLOW AT THAT PRESSURE | CLEANING PATH | WEIGHT |
|---|---|---|---|---|
| UHP SwingArm | DMT.2.620-UHP(-US) | 3,000 bar / 30 l/min | 1,400 mm maximum | 15 kg (arm) |
| BlastCan | DMT.3000.BLASTCAN(-US) | 3,000 bar / 40 l/min | 365 mm | 40 kg |
| Curved BlastCan | DMT.2.3000.BLASTCAN(-US) | 3,000 bar / 40 l/min | 365 mm | 41 kg |
M30×2 water connection. BlastCan variants use a 4-inch camlock vacuum interface; confirm coupling gender for the delivered version. Standard 965 inserts or 972 inserts on the US version: 8 on the UHP arm, 20 on each BlastCan.
SwingArm drive and abrasive arm — manual v5.2, page 143 entries
| COMPONENT | PART NUMBER | DIMENSIONS (L × W × H) | WEIGHT |
|---|---|---|---|
| Drive without tilt | DMT.2.610 | 600 × 500 × 450 mm | 30 kg |
| Drive with tilt | DMT.2.610-TILT | 600 × 500 × 450 mm | 36 kg |
| Abrasive arm | DMT.2.620-ABRASIVE | 1,132 × 500 × 240 mm | 13 kg, excluding nozzles and hoses |
Abrasive arm: 1,400 mm maximum path, 490 N maximum reaction force and 48–51 mm hose/nozzle diameter. Arm and drive are separate components; their weights are not complete carrier weights.
Technical resources
Magtrack Brochure
Product literature and technical references for a closer look.
MagTrack operator manual — version 5.2 (April 2025)Manual PDF ↗Carrier and attachment technical data — manual pages 13–15Technical data PDF ↗MagTrack product brochure — DS25-09Brochure PDF ↗MagTrack — manufacturer video 1YouTube video ↗MagTrack — manufacturer video 2YouTube video ↗MagTrack — manufacturer video 3YouTube video ↗MagTrack — manufacturer video 4YouTube video ↗MagTrack — manufacturer video 5YouTube video ↗MagTrack — manufacturer video 6YouTube video ↗
Request a manual or drawing ↗Talk to Waterblast Industrial
Specify it for your job.
Get help with equipment selection, configuration and a quote.
What to include.
Send the steel surface geometry, coating/deposit, chosen process, working height, access and available water, air and recovery equipment.
