Hydro-Jet Mower
DERC Hydro-Jet Mower
A rotating surface cleaner for waterjetting floors, decks, grates, and other accessible surfaces.
- Pressure models
- 1,500 or 3,000 bar
- Carriage
- Four-wheel stainless steel
- Option
- Vacuum recovery attachment
Equipment selection and ongoing support from Waterblast Industrial.
The product
Built for the work.

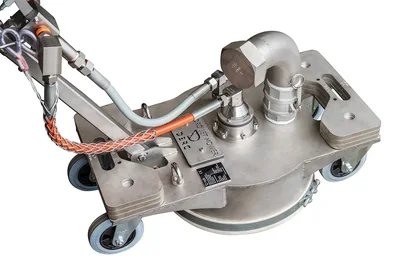

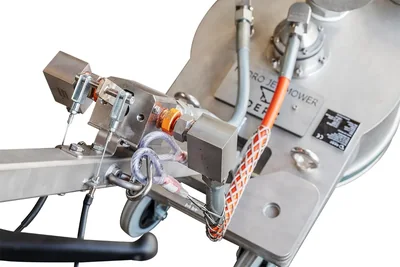

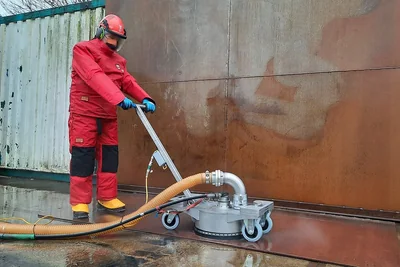

A push-guided rotating waterjet cleaner for floors, grates and decks. The four-wheel stainless steel carriage carries the cleaning manifold and an adjustable handle.
Where it works.
- Floors
- Grates
- Decks and other surfaces
What it offers.
- Separate 1,500 and 3,000 bar models

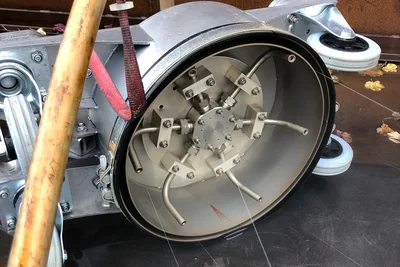

- Four-jet manifold on the 1,500 bar model; six-jet manifold on the 3,000 bar model
- Optional vacuum ring, dump valve and electric control
Technical details
Specifications & models.
Compare the configuration, then talk to us about the complete setup.
Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.
Specifications14 entries
- DIMENSIONS (L x W x H)
- 1275 x 470 x 1100 mm
- CLEANING PATH
- 400 mm
- WEIGHT (EXCL. WEIGHT PLATES)
- 53 / 55 kg
- WEIGHT PLATES P.P.
- 5 kg
- MAX. PRESSURE
- 1500 or 3000 bar
- MAX. FLOW 1500 BAR
- 140 lpm
- CONNECTION 1500 BAR
- M24x1,5 female flat
- TYPE INSERT NOZZLE 1500 BAR
- DSI14-XXX
- MAX. FLOW 3000 BAR
- 75 lpm
- CONNECTION 3000 BAR
- 1 1/8"-12 UNF female
- TYPE INSERT NOZZLE 3000 BAR
- 964.XXX
- VACUUM CONNECTION
- 3" BSPT
- MAX. ROTATION SPEED
- 2500 rpm
- MAX. TEMPERATURE
- 70 ºC
Options 1500 bar / 22K PSI Model4 entries
| DESCRIPTION | PART NO. |
|---|---|
| Basic Surface Cleaner | DHM-1500-18 |
| Vacuum Attachment | DHM-VA-3 |
| Dump Valve | DHM-DV-1500 |
| Electric Control (plug 4 or 7 Pin) | DHM-EC-4 or DHM-EC-7 |
Options 3000 bar / 43K PSI Model4 entries
| DESCRIPTION | PART NO. |
|---|---|
| Basic Surface Cleaner | DHM-3000-18 |
| Vacuum Attachment | DHM-VA-3 |
| Dump Valve | DHM-DV-3000 |
| Electric Control (plug 4 or 7 Pin) | DHM-EC-4 or DHM-EC-7 |
Technical resources
Documents & videos.
Need a manual, dimensional drawing or current technical sheet? Tell us the product and configuration you are considering.
Request a manual or drawing ↗Talk to Waterblast Industrial
Specify it for your job.
Get help with equipment selection, configuration and a quote.
What to include.
Send surface, deposit, available pressure/flow and water-recovery requirements.
