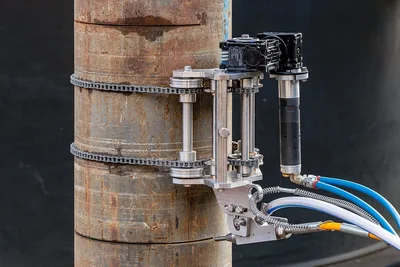

Flexa-Jet Chain Manipulator
Guide an abrasive cutting head around a pipe with a chain-mounted manipulator.
Abrasive cutting
Flexa-Jet Abrasive Cutting System
DERC Flexa-Jet Abrasive Cutting System
Combine ultra-high-pressure water and abrasive for industrial cold-cutting applications.
- Drive
- Air-powered tractor
- Track mounting
- Magnetic or vacuum options
- Process
- Abrasive waterjet cold cutting
Equipment selection and ongoing support from Waterblast Industrial.
The product
Built for the work.

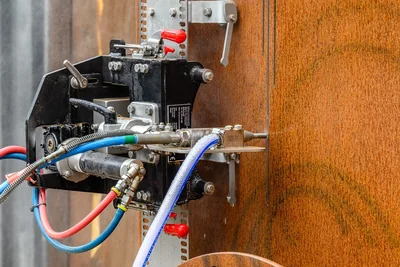

Flexa-Jet combines a guided cutting head with high-pressure water and abrasive. An air-powered tractor follows a track or pipe band while the control panel adjusts movement and abrasive feed.
Where it works.
- Industrial cold cutting
- Straight and curved cuts
- Pipe cutting with the appropriate manipulator
What it offers.
- Track mounting with permanent magnets, switchable magnets or vacuum pads
- Cutting head can be positioned parallel or perpendicular to the track
- Mobile abrasive hopper and feed-monitoring system
Technical details
Specifications & models.
Compare the configuration, then talk to us about the complete setup.
Choose the mounting and control-panel version together. The basic set and optional consumables are listed separately below.
Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.
BASIC CUTTING SET8 entries
| PART NO. | DESCRIPTION |
|---|---|
| D.CUT.TRACK.PM | Flexa-Jet Track direct drive - 1,5 m stainless steel spring steel with permanent magnets |
| D.CUT.TRACK.SM | Flexa-Jet Track direct drive - 1,5 m stainless steel spring steel with switchable magnets |
| D.CUT.TRACK.VP | Flexa-Jet Track direct drive - 1,5m stainless steel spring steel with vacuum pads |
| D.CUT.POWERHEAD | Flexa-Jet Tractor direct drive complete (air), delivered complete with cutting head holder to cut parallel and perpendicular |

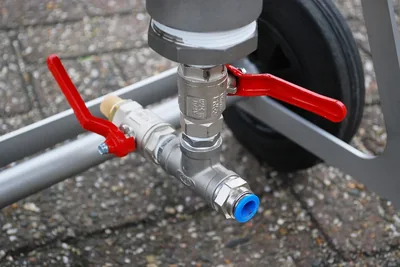

| D.ABHOPPER.AS-B | Hopper assembly stainless steel trolley, complete with abrasive monitoring system and abrasive transport hose |
| CPA-AWCS | Control panel for abrasive cutting system, complete with 3 hoses |
| CPA-AWCS-VAC | Control panel for abrasive cutting system, complete with 3 hoses, for vacuum pads |
| D.ABCUTTIN.AS | Cutting nozzle assembly complete 3000 Bar |
OPTIONAL ACCESSORIES5 entries
| PART NO. | DESCRIPTION |
|---|---|
| D.ABCUTTIN.03 | Spare cone TC for cutting nozzle |
| D.ABCUTTIN.10 | Spare slurry nozzle TC for cutting nozzle 2,5mm |
| D.ABCUTTIN.10.20 | Spare slurry nozzle TC for cutting nozzle 2,0mm |
| D.ABCUTTIN.10.30 | Spare slurry nozzle TC for cutting nozzle 3,0mm |
| 965.xxx | HP nozzle M10 model 965 |
Technical resources
Documents & videos.
Product literature and technical references for a closer look.
Request a manual or drawing ↗Talk to Waterblast Industrial
Specify it for your job.
Get help with equipment selection, configuration and a quote.
What to include.
Send material, thickness, cut shape, mounting surface, access and water/air supplies.
