Hose Catcher VE.70500
DERC Hose Catcher VE.70500
Guide and restrain a cleaning hose at a tube-bundle entry point.
- Options
- Compare listed models and configurations below
Equipment selection and ongoing support from Waterblast Industrial.
The product
Built for the work.

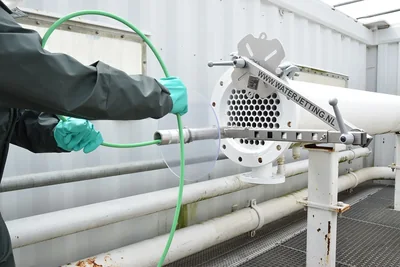

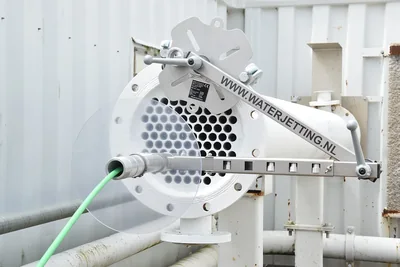

An articulated hose catcher for reaching tubes across a bundle. Two hinged points position the guide, and the modular arm can also be removed for single-pipe work.
Where it works.

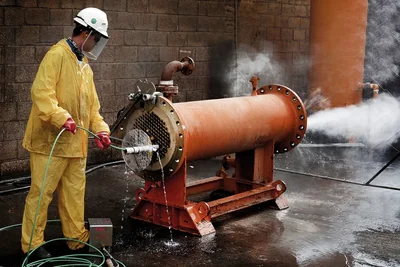

- Manual tube bundle cleaning
- Horizontal or vertical applications
What it offers.
- Transparent splash screen
- Interchangeable hose stoppers
- Vertical arrangement uses an adapter at the foot pedal
Technical details
Specifications & models.
Compare the configuration, then talk to us about the complete setup.
Select the stopper and mounting arrangement for the actual hose assembly; hose nominal size and stopper inside diameter are different measurements.
Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.
THE VE.70500 WILL BE SUPPLIED WITH STOPPERS:6 entries
| INTERNAL Ø OF HOSE STOPPER | PART NO. |
|---|---|
| 7.7 mm | RV8-28-108-77 |
| 8.5 mm | RV8-28-108-85 |
| 10.5 mm | RV8-28-108-11 |
| 12.5 mm | RV8-28-108-13 |
| 15 mm | RV8-28-108-15 |
| 18 mm | RV8-28-108-18 |
OPTIONAL STOPPERS3 entries
| INTERNAL Ø OF HOSE STOPPER | PART NO. |
|---|---|
| 14 mm | RV8-28-108-14 |
| 22 mm | RV8-28-108-22 |
| 28 mm | RV8-28-108-28 |
Technical resources
Documents & videos.
Need a manual, dimensional drawing or current technical sheet? Tell us the product and configuration you are considering.
Request a manual or drawing ↗Talk to Waterblast Industrial
Specify it for your job.
Get help with equipment selection, configuration and a quote.
What to include.
Send pipe/flange dimensions, orientation, hose outside diameter, nozzle size and available mounting space.
