Hose Catcher VE.80000
DERC Hose Catcher VE.80000
An adjustable hose-catcher assembly for manual pipe-cleaning operations.
- Options
- Compare listed models and configurations below
Equipment selection and ongoing support from Waterblast Industrial.
The product
Built for the work.

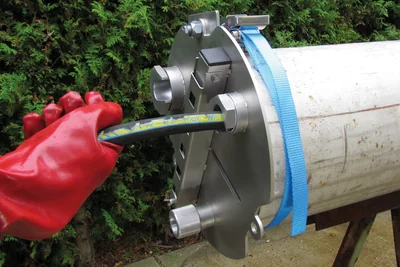

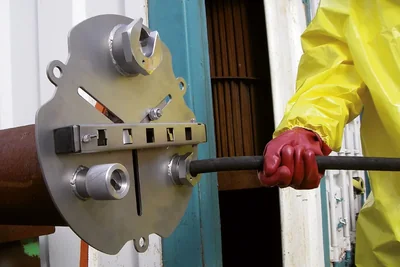

A plate-style hose catcher for larger pipes. It offers separate connections for 1/2 inch hose, 3/4 inch hose and flexible lances.
Where it works.
- Manual cleaning of larger pipes
What it offers.
- Pipe coverage up to 400 mm outside diameter; larger by request
- Clamp, bolt or lashing mounting options
- Interchangeable flex-lance stoppers and storage cassette
Technical details
Specifications & models.
Compare the configuration, then talk to us about the complete setup.
Select the stopper and mounting arrangement for the actual hose assembly; hose nominal size and stopper inside diameter are different measurements.
Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.
THE VE.80000 WILL BE SUPPLIED WITH STOPPERS:5 entries
| INTERNAL Ø OF HOSE STOPPER | PART NO. |
|---|---|
| 8.5 mm | RV8-28-108-85 |
| 10.5 mm | RV8-28-108-11 |
| 12.5 mm | RV8-28-108-13 |
| 14 mm | RV8-28-108-14 |
| 28 mm | RV8-28-108-28 |
Technical resources
Documents & videos.
Need a manual, dimensional drawing or current technical sheet? Tell us the product and configuration you are considering.
Request a manual or drawing ↗Talk to Waterblast Industrial
Specify it for your job.
Get help with equipment selection, configuration and a quote.
What to include.
Send pipe/flange dimensions, orientation, hose outside diameter, nozzle size and available mounting space.
