Tank cleaning

Mini Turret

DERC Mini Turret

An automated cleaning tool for tanks and enclosed industrial spaces.

Motion: Automated positioning and oscillation
Material options: Aluminium or stainless steel
Option: Camera and monitor system

Enquire about Mini Turret

Equipment selection and ongoing support from Waterblast Industrial.

Tank cleaning ↗

The product

Built for the work.

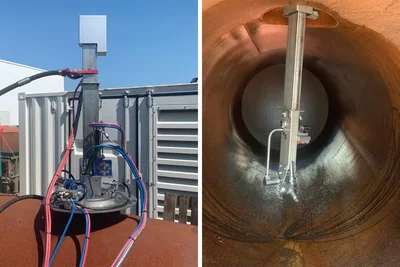

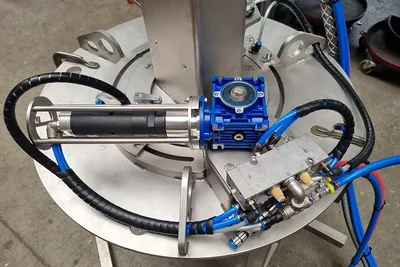

A flange-mounted positioning and jetting arm for tanks and confined spaces. Arm movement, rotation and nozzle oscillation create a three-dimensional cleaning action.

Where it works.

Tank and reactor cleaning
Confined-space cleaning

What it offers.

Aluminium or stainless steel versions
Optional camera and monitor arrangement
Optional chemical-cleaning configuration

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

Chemical suitability depends on the selected material and cleaning configuration.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

Specifications8 entries

MAX. PRESSURE: 1000 bar
MAX. FLOW: 130 lpm
FLANGE: 16" 3000#
REACH: 500-1500 mm under flange
MOVEMENTS: Nozzle 135° angle range oscillating, arm up/down, arm rotation
NOZZLE: Model L/226 high speed jet
MATERIAL: Lightweight version aluminium approx. 60Kg / Stainless steel version approx. 90Kg
OPTIONS: Chemical cleaning set, swivel, nozzle manifold, automated rotation, 2 end switches installed so the Mini Turret rotates back and forth in a set angle/area, camerasystem
