Swivels

RCS-UHS

DERC RCS-UHS

Transfer ultra-high-pressure water from a stationary supply into a moving assembly.

Maximum pressure: 3,000 bar
Application: Rotating or twisting water supply

Enquire about RCS-UHS

Equipment selection and ongoing support from Waterblast Industrial.

Swivels ↗

The product

Built for the work.

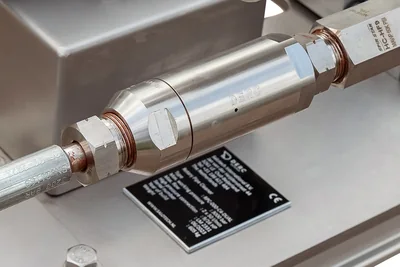

A high-pressure swivel that transfers water from a stationary supply into a rotating or twisting assembly. Choose the connection pair and rated model for the installation.

Where it works.

Hose reels
Automated cleaning systems
Lance cleaning systems

What it offers.

Stainless steel construction
Straight or 90° inlet options
Low static torque; rated rotation up to 2,000 rpm

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

Connection-specific ratings are listed below. Match maintenance kits to the exact swivel model.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

DERC RCS-UHS OPTIONS4 entries

DERC RCS-UHS OPTIONS
INLET CONNECTION	SHAFT CONNECTION	LENGTH	DIAMETER	MAX. PRESSURE	MAX. FLOW	PART NO.
M30 X 2 F	M14 x 1.5 LH M	165 mm	45 mm	3000 bar	75 lpm	RCS-UHS-M14
1 1/8" - 12 UNF F	9/16"- 18 UNF LH M	165 mm	45 mm	3000 bar	75 lpm	RCS-UHS-916HP
1 1/8" - 12 UNF F 90°	9/16"- 18 UNF LH M	180 mm	45 mm	3000 bar	75 lpm	RCS-UHS-916HP 90°
1 1/8" - 12 UNF F	9/16"- 18 UNF LH M	200 mm	45 mm	3000 bar	75 lpm	RCS-UHS-L-916HP
