Pipe cleaning

Rotating Pipe Cleaner RPC

DERC Rotating Pipe Cleaner RPC

A rotating waterjet tool for removing deposits from the inside of drill pipes and other pipework.

Pressure options: 1,000 / 1,500 / 3,000 bar
Lance options: Single or dual
Adjustment: Independent rotation and feed

Enquire about this equipment

Equipment selection and ongoing support from Waterblast Industrial.

Pipe cleaning ↗

The product

Built for the work.

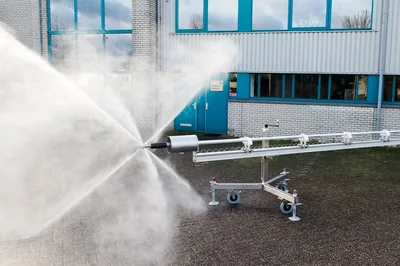

A modular rotating-lance system for cleaning large internal-diameter pipes, including drill pipe containing cement or drilling mud. Feed and rotation speeds are adjusted independently.

Where it works.

Large pipe interiors
Drill pipe with cement or drilling mud deposits

What it offers.

Single or dual supported lance configurations
Height-adjustable wheeled jack stands
Length, centralizers and nozzle carriers configured for the pipe

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

Specifications8 entries

MAX. PRESSURE: 1000 bar / 15K 1500 bar / 22K 3000 bar / 43K
MAX. FLOW: Up to 400 lpm
LENGTH: Configurable
JACK STANDS: Stainless Steel Standard 2x pieces height adjustable complete with jacks and wheels Longer length RPC needs more jack stands

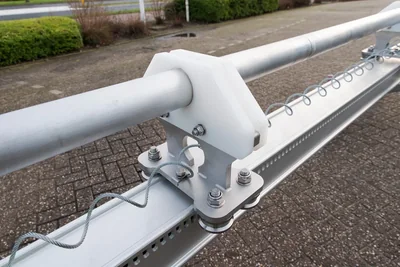

GUIDE BLOCKS: Stainless Steel 4 roller bearings heavy duty
HP LANCE: Configurable to pressure, single or dual

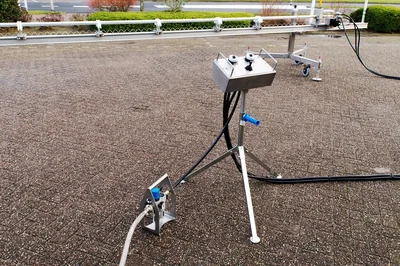

CONTROL PANEL: Stainless steel Complete with oiler, filter and air hoses Functions: lance feed in/out, rotation, both speed regulated independently

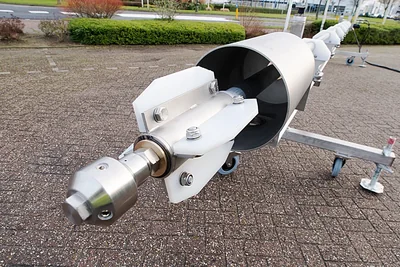

NOZZLES AND CENTRALIZERS: Configurable to the working pressure and pipe diameter
