Pipe cleaning

RotoCar Cleaning System

DERC RotoCar Cleaning System

A pipe-cleaning system for tackling scale and hard internal deposits.

Pressure configurations: 1,500 or 3,000 bar
Flow by configuration: 380 l/min at 1,500 bar; 140 l/min at 3,000 bar
Rotation: 20–300 rpm

Enquire about this equipment

Equipment selection and ongoing support from Waterblast Industrial.

Pipe cleaning ↗Automated systems ↗

The product

Built for the work.

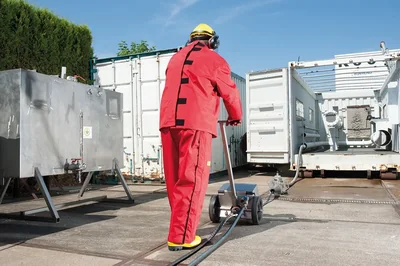

RotoCar rotates a high-pressure hose while a feeder pushes or pulls it through the pipe. It is intended for difficult deposits in long or bent pipe runs.

Where it works.

Long and complex pipelines
Pipes with bends
Scale and incrustation removal

What it offers.

Air-driven hose rotation and powered feed
Adjustable hose speed

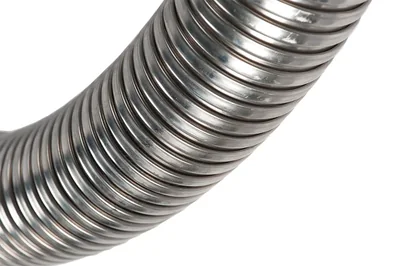

Pipe-mounted clamp and protective flexible guide tube

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

Specifications7 entries

MAX PRESSURE: 1500 or 3000 bar
MAX FLOW: 380 lpm (1500 bar) or 140 lpm (3000 bar)
HOSE CONNECTION 1500 BAR: M24 x 1.5 DKOS male, M36 x 2 DKOS male (inlet and outlet)
HOSE CONNECTION 3000 BAR: 9/16” HP
ROTATING SPEED: Adjustable from 20 till 300 rpm
LENGTH PROTECTING HOSE: 3 m (10 ft)
WEIGHT: Approximate 65 kg
