Tube & bundle cleaning
Runner Nozzle Ø 10 mm
Reach small heat exchanger tubes with a 10 mm rotating cleaning nozzle.
Tube & bundle cleaning
Runner Nozzle UHP Ø 13 mm
DERC Runner Nozzle UHP Ø 13 mm
A compact rotating nozzle for ultra-high-pressure cleaning inside heat exchanger tubes.
- Body diameter / length
- 13 × 75 mm
- Maximum body pressure
- 3,000 bar
- Listed head flow ranges
- 18–20 / 22–24 / 25–28 l/min
Equipment selection and ongoing support from Waterblast Industrial.
The product
Built for the work.

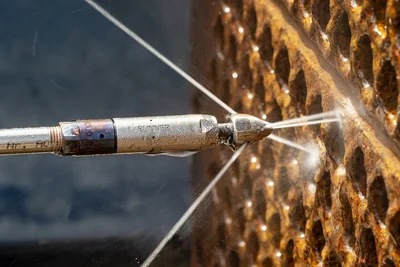

The 13 mm UHP Runner uses a rotating, drilled head to remove hard plugs and scale inside tubes. Its body is rated to 3,000 bar; nine listed heads combine three cleaning patterns with three flow ranges.
Where it works.
- Heat exchanger tubes
- Evaporator tubes
- Tube and pipe cleaning
What it offers.
- Standard, Unplugger and Polisher head choices
- Hardened rotating body with wrench flats
- Custom drilled heads can be requested for a specific application
Technical details
Specifications & models.
Compare the configuration, then talk to us about the complete setup.
The listed heads operate at 2,500–3,000 bar. Confirm the exact hose interface and selected head before ordering.
Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.
Runner 13 UHP - Diameter Ø 13 mm - Length 75 mm1 entry
| CONNECTION | MAX. PRESSURE | PART NO. |
|---|---|---|
| 3/8” UNF LH | 3000 bar / 44 KPSI | RUN13UH-H6LF |
Runner 13 UHP Heads9 entries
| PART NO. | TYPE | MAX. PRESSURE | FLOW |
|---|---|---|---|
| RUN13UH-025B-U1 | Unplugger | 2500-3000 bar / 38-44K | 18-20 lpm / 4.5-5 gpm |
| RUN13UH-025B-U2 | Unplugger | 2500-3000 bar / 38-44K | 22- 24 lpm / 5.5-6 gpm |
| RUN13UH-025B-U3 | Unplugger | 2500-3000 bar / 38-44K | 25-28 lpm / 6.5-7.5 gpm |
| RUN13UH-025B-P1 | Polisher | 2500-3000 bar / 38-44K | 18-20 lpm / 4.5-5 gpm |
| RUN13UH-025B-P2 | Polisher | 2500-3000 bar / 38-44K | 22- 24 lpm / 5.5-6 gpm |
| RUN13UH-025B-P3 | Polisher | 2500-3000 bar / 38-44K | 25-28 lpm / 6.5-7.5 gpm |
| RUN13UH-025B-S1 | Standard | 2500-3000 bar / 38-44K | 18-20 lpm / 4.5-5 gpm |
| RUN13UH-025B-S2 | Standard | 2500-3000 bar / 38-44K | 22- 24 lpm / 5.5-6 gpm |
| RUN13UH-025B-S3 | Standard | 2500-3000 bar / 38-44K | 25-28 lpm / 6.5-7.5 gpm |
Talk to Waterblast Industrial
Specify it for your job.
Get help with equipment selection, configuration and a quote.
What to include.
Send tube inside diameter, deposit type, available flow at operating pressure, hose-end details and the head part number you are considering.
