Rotary Coupling Swivel RCS-200

DERC Rotary Coupling Swivel RCS-200

A powered rotary coupling that feeds high-pressure water into rotating cleaning equipment.

Maximum pressure: 1,500 bar
Type: Powered rotary coupling

Enquire about this equipment

Equipment selection and ongoing support from Waterblast Industrial.

Tube & bundle cleaning ↗Swivels ↗Surface preparation ↗

The product

Built for the work.

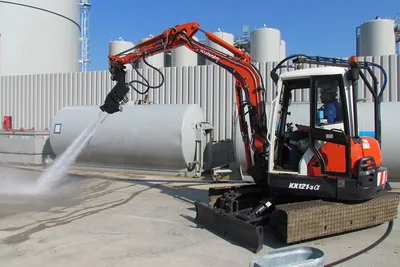

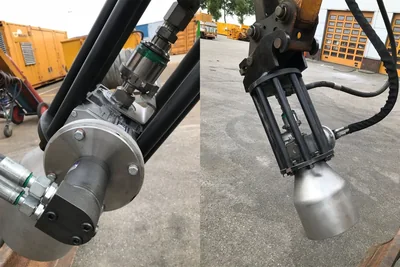

A powered swivel and nozzle-arm assembly for controlled surface cleaning. Rotation speed can be adjusted independently of the cleaning head configuration.

Where it works.

External tube bundle cleaning
Floors and conveyors
Large surfaces and automated cleaning systems

What it offers.

Air or hydraulic drive
Stainless steel guard around the head and arms
Replaceable nozzle tips and a 215 mm jet path on the described standard arms

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

DERC RCS-200C-HS-A1 entry

DERC RCS-200C-HS-A
MAX. PRESSURE	DRIVE	ROTATION SPEED	MAX. FLOW
1000 / 1500 bar	Air	+/- 500 rpm	380 / 240 lpm

DERC RCS-200C-HS-H1 entry

DERC RCS-200C-HS-H
MAX. PRESSURE	DRIVE	ROTATION SPEED	MAX. FLOW
1000 / 1500 bar	Hydraulic	+/- 400 rpm	380 / 240 lpm

OPTIONAL ARMS AND HEADS3 entries

OPTIONAL ARMS AND HEADS
ARM TYPE	NOZZLE TYPE	MAX. PRESSURE	Notes
RCS-230B-M20-T4	Type 04 nozzles	1500 bar	Complete with flow stabilizers and nozzle caps
RCS-230B-M20-T226	Type 226 nozzles	1000 bar	Complete with flow stabilizers and nozzle caps
RCS-230B-14NF	DI 14 nozzles	Confirm arm rating	With integrated flow inducer
