Pipe cleaning

Speed Regulated Pipe Cleaner SPC

DERC Speed Regulated Pipe Cleaner SPC

A speed-regulated cleaning tool for waterjetting through pipework with bends.

Maximum pressure: 1,500 bar
Sizes: SPC-S, SPC-M, SPC-L
Rotation: Adjustable speed

Enquire about this equipment

Equipment selection and ongoing support from Waterblast Industrial.

Pipe cleaning ↗

The product

Built for the work.

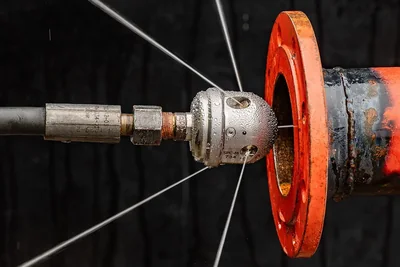

A compact, water-driven rotating nozzle for cleaning pipework with elbows. Manual speed adjustment lets the cleaning pattern be adapted to the deposit.

Where it works.

Industrial pipes with elbows
Unplugging and internal wall cleaning

What it offers.

SPC-S, SPC-M and SPC-L body sizes
Hardened protection ring
Speed-setting tool supplied; storage case optional

Technical details

Specifications & models.

Compare the configuration, then talk to us about the complete setup.

Open a section to see its details. Wide tables scroll sideways. Ratings apply to the stated model or component; separate maximum values are not a guaranteed operating point. M / F indicate male / female; LH / RH indicate left- / right-hand thread. Blank source values are shown as —.

SPC-S6 entries

SPC-S
MAX. PRESSURE	1000 bar / 15K	1500 bar / 22K
FLOW	30 - 50 l/min / 8-13gpm	30 - 50l/min / 8-13gpm
INLET CONNECTION	¼” NPT F	¼” BSP 3/8” UNF LH 3/8” UNF RH 9/16” UNF LH 9/16” UNF RHF
ROTATION SPEED	100 - 300 RPM (adjustable)	100 - 300 RPM (adjustable)
PIPE	2” – 4” (DN50 - DN100)	2” – 4” (DN50 - DN100)
INSERTS	7 x M4 (046.xxx)	7 x M4 (046.xxx)
DIAMETER	Ø 35 mm	Ø 35 mm

SPC-M6 entries

SPC-M
MAX. PRESSURE	1000 bar / 15K	1500 bar / 22K
FLOW	50 - 115 l/min / 13-30gpm	50 -100 l/min / 13-26gpm
INLET CONNECTION	3/8” NPT F	M24 x 1.5 DKOS 3/4” type M 3/4” 16 UNF M
ROTATION SPEED	50-300 RPM (adjustable)	50-300 RPM (adjustable)
PIPE	4”- 8” (DN100 - DN200)	4”- 8” (DN100 - DN200)
INSERTS	5 x 1/8” NPT ( DI 18.xxx )	5 x 1/8” NPT ( DI 18.xxx )
DIAMETER	Ø 69 mm	Ø 69 mm

SPC-L6 entries

SPC-L
MAX. PRESSURE	1000 bar / 15K	1500 bar / 22K
FLOW	55 - 210 l/min / 14.5– 55.5gpm	50 -170 l/min / 13 – 45gpm
INLET CONNECTION	1/2” NPT F	M24 x 1.5 DKOS M36 x 2 DKOS 9/16” MPF (13/16”)
ROTATION SPEED	50 - 300 RPM (adjustable)	50 - 300 RPM (adjustable)
PIPE	6”- 12” (DN150 - DN300)	6”- 12” (DN150 - DN300)
INSERTS	5 x 1/4” NPT ( DSI 14.xxx )	5 x 1/4” NPT ( DSI 14.xxx )
DIAMETER	Ø 95 mm	Ø 95 mm
